XCC1510SPA11Y

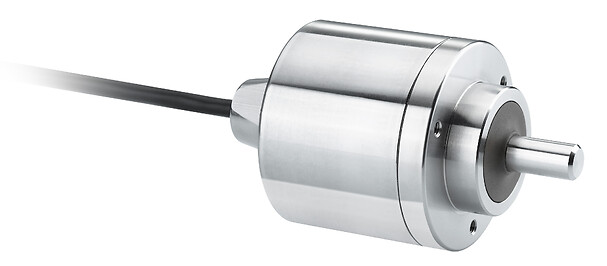

Opto-electronic rotary encoders XCC, incremental encoder Ø 58 stainless steel, solid shaft 10 mm, 1024pts, push pull
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XCC
Encoder type
Incremental encoder
Product specific application
Food and beverage
Encoder name
XCC
Enclosure material
Stainless steel 316 L
Cable composition
8 x 0.14 mm²
[Us] rated supply voltage
5...30 V DC
Shaft type
Solid shaft
Resolution
1024 points
Output stage
Type Y
Type of output stage
Driver push-pull
Electrical connection
Cable axial shielded
IP degree of protection
IP68 conforming to IEC 60529, IP69K conforming to IEC 60529
Cable insulation material
Silicone
Current consumption
0...75 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Shaft tolerance
G6
Residual ripple
500 mV
Vibration resistance
10 gn (f= 55-2000 Hz) conforming to IEC 60068-2-6
Maximum load
50 daN axial, 25 daN radial
Shock resistance
50 gn for 6 ms conforming to IEC 60068-2-27
Output level
Low level: 0.5 V maximum 20 mA, high level: V supply - 2.5 V minimum 20 mA
Base material
Stainless steel 316 L
Shaft material
Stainless steel 316 L
Type of ball bearings
6000
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.5 CENTIMETER
Package 1 width
14 CENTIMETER
Package 1 length
27 CENTIMETER
Package 1 weight
1.02 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

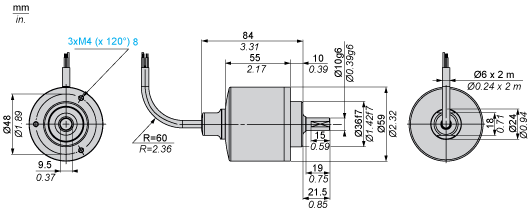

Dimensions
- R : Minimum bend radius = 60 mm
Wiring Diagram
Type Y Output Stage
- (1) RS 422 compatible on 5 V supply
- (2) Encoder
- (3) Processing
- (4) Supply 5 V/30 V
Wiring Diagram
