XUSZMD106
Telemecanique Safety light curtains XUSL, Mirrors for light curtains with fastening systems 1230 mm, Hp = 1060 mm
Commercialised
Alle erweitern
Datenblatt
Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Adaptation accessories
Accessory / separate part type
90° mirror adaptor
Product compatibility
XUSL.E...16 with 4 beams
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Material
Glass
Sensing distance reduction coefficient
0.85 Sn
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
14.5 CENTIMETER
Package 2 width
20 CENTIMETER
Package 2 length
130.5 CENTIMETER
Package 2 weight
6.281 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Alle erweitern
Technische Zeichnungen

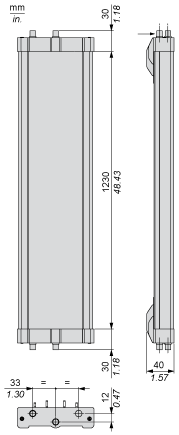

Dimensions
Alle erweitern
Dokumente & Downloads
Dokumentenname
Datum
Größe
2025-02-07
7562043
2025-02-07
6702471
Dokumentenname
Datum
Größe
7/18/2024
1457543
Dokumentenname
Datum
Größe
2025-02-28
408460
2025-05-19
352838
Dokumentenname
Datum
Größe
2019-11-01
1460257
2019-11-01
1462187
2019-11-01
1452167
2019-11-01
1773325
2019-11-01
1774314
Dokumentenname
Datum
Größe
2018-01-17
5134886
2018-01-17
5705671
Alle erweitern
Verwandte Produkte & Zubehör
XUSL2E30H106NWC
Safety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL IP69K Hand protection w/o Heating, Std range, Hp = 1060 mm, R=30 mm
XUSL4E30H106NS1
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave1, For hand protection, Hp = 1060 mm, R=30 mm
