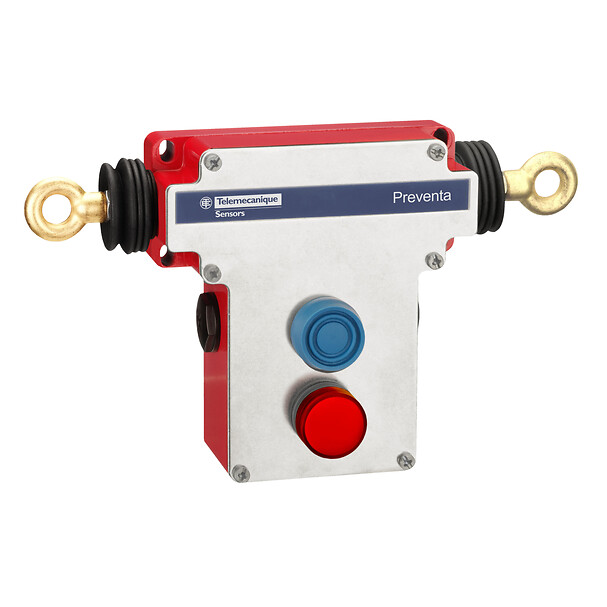

XY2CEDA296H7
Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), 1/2" NPT, boot. pb, pilot light
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Dual emergency stop rope pull switch
Device short name
XY2CED
Housing colour
Red RAL 3000
Overvoltage category
Class I conforming to IEC 61140
Local signalling
With pilot light, red, 24...130 V
Bellow material
Nitril
Body material
Zamak
Cover material
Stainless steel
Reset
By booted push-button
Contacts type and composition
2 x (1 NC + 1 NO)
Contact operation
Slow-break
Trigger cable anchor point
RH and LH sides
Connections - terminals
Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data
B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking
CE
Positive opening
With conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Compatibility code
XY2CED
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
UL 508
work equipment directive 2009/104/EC
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
UL 508
work equipment directive 2009/104/EC
Product certifications
UL category NISD emergency stop devices, CSA, CCC, EAC
Protective treatment
TC
Vibration resistance
10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP66 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
4
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.564 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Without Tensioner
Dimensions
With Tensioners
Electrical Curves
AC Supply 50/60 Hz. Inductive Circuit
- (y) Millions of operating cycles
- (x) Current in A
Electrical Curves
Mounting and Clearance
Adjustment Values (With End Spring)
- In grey : Prohibited zone
Expand all
Documents & Downloads
Document name
Date
Size
7/18/2024
102545
7/18/2024
118876
7/18/2024
23385
7/18/2024
23799
7/18/2024
28915
7/18/2024
29847
7/18/2024
32666
7/18/2024
32757
7/18/2024
35384
7/18/2024
35453
7/18/2024
360893
7/18/2024
66911
7/18/2024
74071
7/18/2024
802717
7/18/2024
81401
Document name
Date
Size
2025-05-16
335174
2025-05-19
318917
Document name
Date
Size
2024-02-07
586440
XY2CE1/2/5/6... and XY2CED... emergency stop trip wire switches - UK declaration of conformity (pdf)
2024-02-27
177244
2024-02-07
556384
Document name
Date
Size
2023-07-25
814696
Document name
Date
Size
Document name
Date
Size
2025-09-15
10895759
Expand all
Related products & accessories
XY2CH13150H7
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 1NC+1 NO, flush pushbutton
XY2CH13170H7
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, trip wire cable 240 VAC 10 A XY2C
XY2CH33010H7
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable 240 VAC 10amp XY2C +options

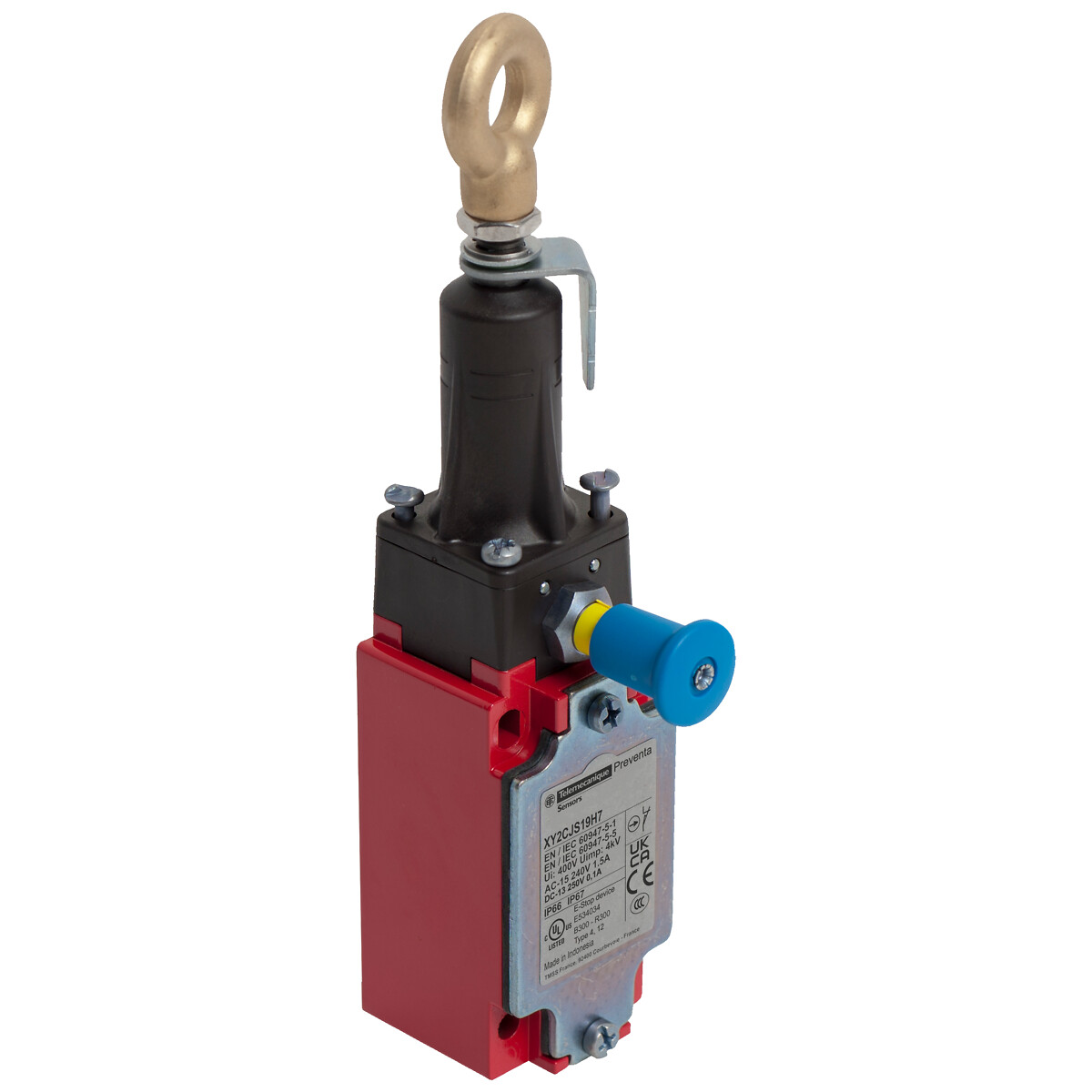

XY2CJS19H7
