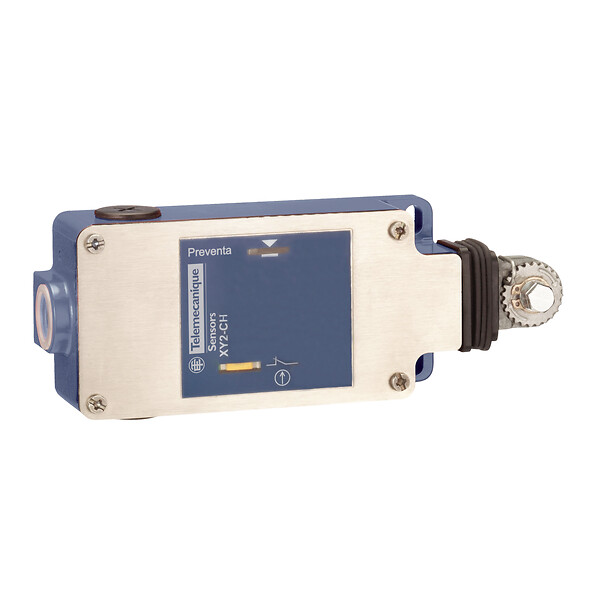

XY2CH33010H7
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable 240 VAC 10amp XY2C +options
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Latching emergency stop rope pull switch
Device short name
XY2CE
Housing colour
Blue
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Local signalling
Without pilot light
Body material
Zamak
Cover material
Stainless steel
Reset
By booted push-button
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Trigger cable anchor point
RH or LH side
Connections - terminals
Screw clamp terminal, 1 x 0.5...2 x 1.5 mm², screw clamp terminal, 1 x 0.34...2 x 0.75 mm²
Safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data
B10d = 4000000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking
CE
Positive opening
With conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Compatibility code
XY2CE
Standards
CSA C22.2 No 14
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
work equipment directive 2009/104/EC
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
work equipment directive 2009/104/EC
Product certifications
UL category NISD emergency stop devices, CCC
Protective treatment
TC
Vibration resistance
10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP66 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8 CENTIMETER
Package 1 width
10.5 CENTIMETER
Package 1 length
20.5 CENTIMETER
Package 1 weight
915 GRAM
Unit type of package 2
S03
Number of units in package 2
10
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.373 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
