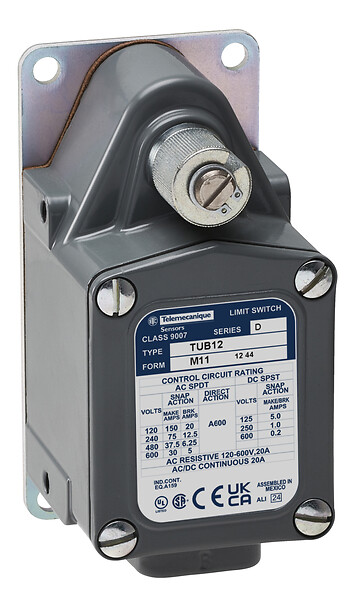

9007TUB12M11
Limit switch, 9007, 600 VAC 12amp t +options
Commercialised
Alle erweitern
Datenblatt
Series name
Severe duty
Device application
Heavy duty
standard mill switch
universal mill switch
standard mill switch
universal mill switch
Device short name
T
Head type
Rotary head
Base plate style
Style B
Body material
Cast zinc
Switch actuation
CW and CCW
Electrical connection
Screw clamp terminal AWG 22...AWG 12
Cable entry
Conduit entry, cable outer diameter: 20-20 mm conforming to UL 508
Switch function
SPDT-DB
Contact operation
Snap action
Contact form
Form Z
Contacts material
Silver flashed copper
Contact status
Closed A for CCW position, open A for CW position, open B for CCW position, closed B for CW position
Positive opening
Without
Type of operator
Spring return lever arm to be ordered separately, maintained to be ordered separately
Repeat accuracy
+/- 0.004 in 0.1 mm
Contact code designation
A600, Q600
Product certifications
CE
CSA
UL listed
CSA
UL listed
Shock resistance
30 gn
Vibration resistance
10 gn (f= 10-55 Hz)
NEMA degree of protection
NEMA 1/2/4/12/13
IP degree of protection
IP65, IP66, IP67
Electrical shock protection class
Class 0
Protective treatment
Corrosion resistant gray paint
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
90 CENTIMETER
Package 2 width
40 CENTIMETER
Package 2 length
70 CENTIMETER
Package 2 weight
1.134 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
