XCC3515CV84FB

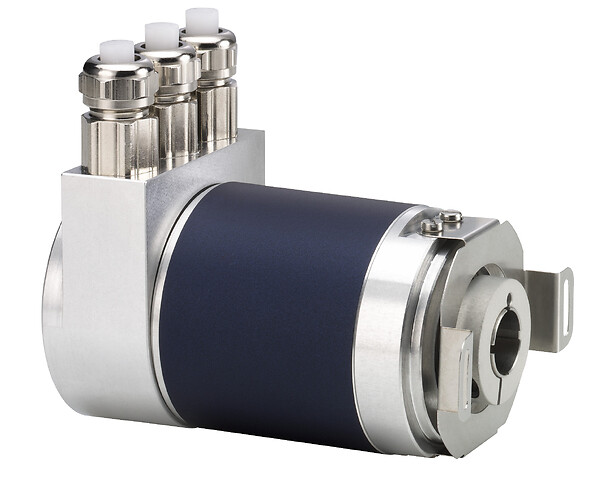

Absolute encoder Ø 58 multi turn - hollow shaft 15 mm - 25-bit binary - PROFIBUS
End of commercialisation Datum der Produktabkündigung : Datum des Service-Endes :
Alle erweitern
Datenblatt
Range of product
OsiSense XCC
Device short name
XCC
Encoder type
Multiturn absolute encoder fieldbus
Product specific application
Not applicable
Enclosure material
Aluminium
Bus type
Profibus DP 3.062 V1.1. conforming to IEC 61158, EN 50170 class 2, IEC 61784, EN 50254
Shaft type
Hollow
Resolution
4096 turns/8192 points
Type of output stage
PROFIBUS-DP 25-bit
Electrical connection
3 cable glands Pg 9 radial external supply
IP degree of protection
IP64 conforming to IEC 60529
[Us] rated supply voltage
24 V DC
Transmission rate
9.6 kbit/s...12000 kbit/s
Product certifications
DIN VDE 0160
PNO
Schneider Electric interoperability standards
PNO
Schneider Electric interoperability standards
Current consumption
0...100 mA no-load
Protection type
Reverse polarity protection
voltage peaks protection
voltage peaks protection
Status LED
Status: 1 LED (green), error: 1 LED (red)
Shaft tolerance
F7
Vibration resistance
10 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Maximum load
11 daN radial
Shock resistance
100 gn for 6 ms conforming to IEC 60068-2-27
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6803ZZ
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Alle erweitern
Technische Zeichnungen

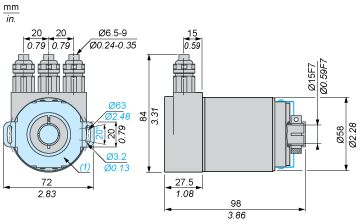

Dimensions
- (1) Flexible mounting kit, 1 x XCCRF5B mounted
Wiring Diagram
PROFIBUS-DP Connections
PROFIBUS-DP Connections
- (1) 1st or last encoder
- (2) Encoder X
PROFIBUS-DP Connections
- (1) 1st or last encoder
- (2) Encoder X
- (1) 0 => 99
