XSPN01122

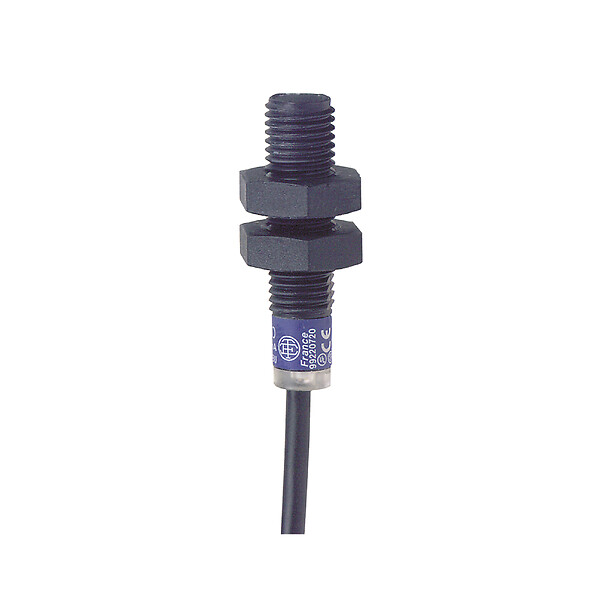

Inductive proximity sensors XS, inductive sensor XSP, cylindrical M8, Sn 1.5 mm, cable 2 m

End of commercialisation Datum der Produktabkündigung : Datum des Service-Endes :

pdf-Datenblatt herunterladen 3d cad-Datei herunterladen Fachhändler in der Nähe

XSPN01122 is replaced by the following product:

XS508BSCBL2

Inductive proximity sensors XS, inductive sensor XS5 M8, L33mm, brass, Sn1.5 mm, 12...24 VDC, cable 2 m

Menge  1

Alle erweitern

Datenblatt

Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XSP
Sensor design
Cylindrical M8
Body type
Fixed
Type of output signal
Discrete
Discrete output type
Namur
[Us] rated supply voltage
12...48 V DC
IP degree of protection
IP67 conforming to IEC 60529
Detection face
Frontal
Residual current
0.5 mA open state
Marking
CE
Product certifications
CCC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
9.4 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
60 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
