XUM2APSBM8

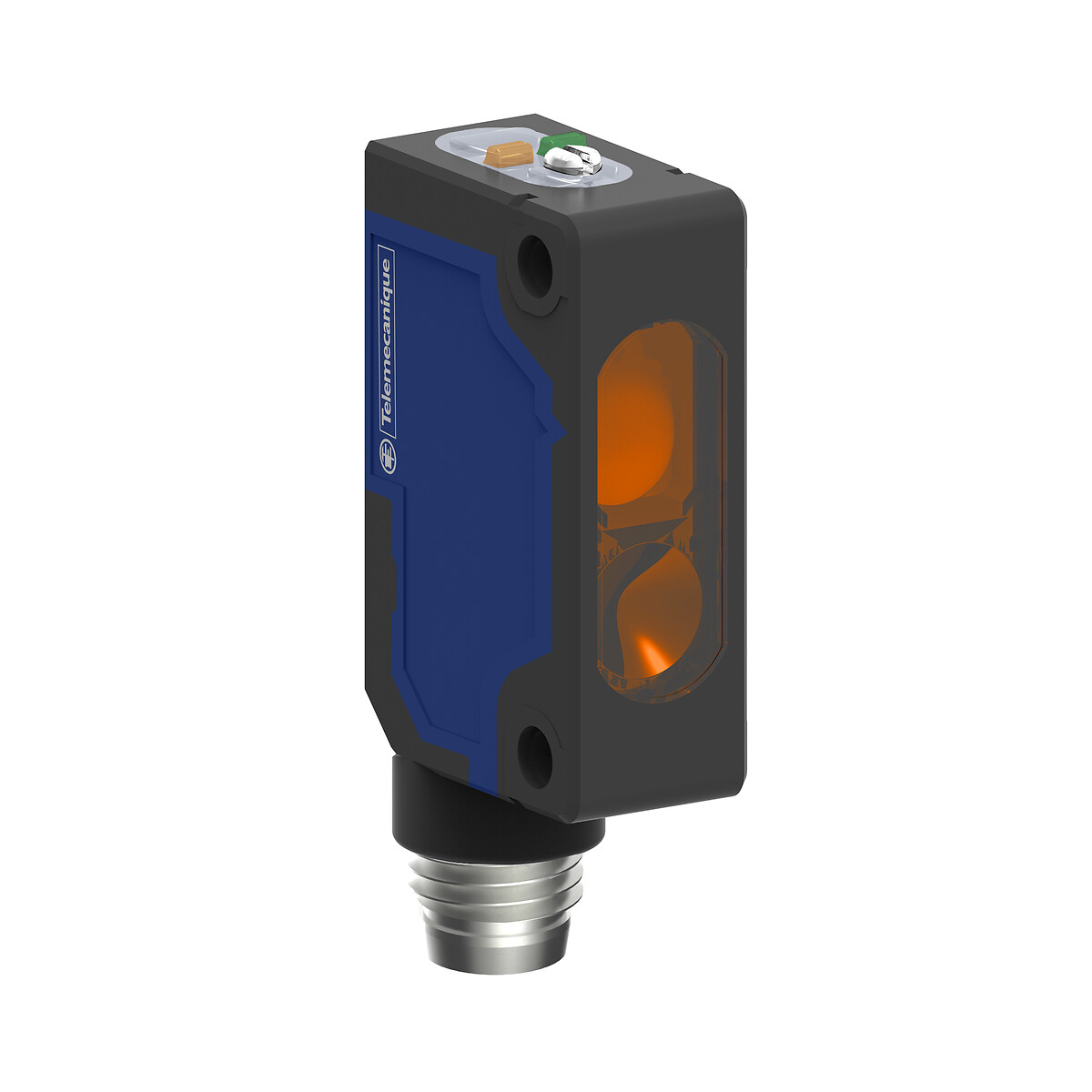

Photoelectric sensors XU, miniature, thru beam, Sn=20 m, PNP, connector M8

End of commercialisation Datum der Produktabkündigung : Datum des Service-Endes :

XUM2APSBM8 is replaced by the following product:

XUM2APXBM8

Photoelectric sensors XU, miniature, thru beam, Smax=30 m, system, PNP, connector M8

Menge  1

Alle erweitern

Datenblatt

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with short-circuit protection
Switching frequency
500 Hz
Maximum voltage drop
<2 V
Current consumption
30 mA no-load
Delay first up
300 MILLISECOND
Delay response
1 MILLISECOND
Setting-up
Sensitivity by potentiometer
Kit composition
Transmitter + receiver
Vibration resistance
+/-0.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
30 gn for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP54 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1 CENTIMETER
Package 1 width
6 CENTIMETER
Package 1 length
13.5 CENTIMETER
Package 1 weight
25 GRAM
Unit type of package 2
S02
Number of units in package 2
100
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.863 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Alle erweitern

Technische Zeichnungen

Dimensions

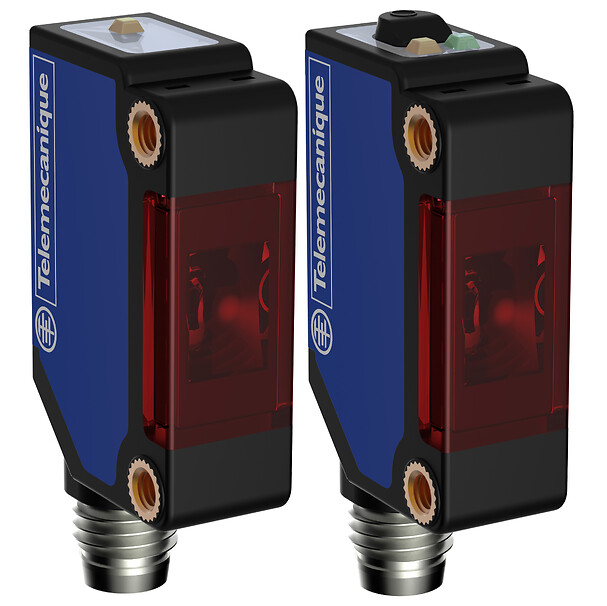

Transmitter. Connector Version

epds

Transmitter. Connector Version

epds
  • (1) Power supply indicator (orange)
  • (2) Transmission

Dimensions

Receiver. Connector Version

epds

Receiver. Connector Version

epds
  • (1) Output indicator (orange)
  • (2) Stability indicator (green)
  • (3) Setting pushbutton
  • (4) Reception

Connections and Schema

M8 Connector

epds
  • 3 : (-)
  • 1 : (+)
  • 4 : OUT/Output

Connections and Schema

PNP

epds
  • BN : Brown
  • BU : Blue
  • BK : Black

Connections and Schema

DC Transmitter

epds
  • BN : Brown
  • BU : Blue

Mounting and Clearance

Tightening Torques

epds
  • (1) Base mounting fixing bracket

Tightening Torques

epds
  • (1) Base mounting fixing bracket
  • (2) Pre-wired M8 connector

Performance Curves

Thru-beam System

epds

Thru-beam System

epds
  • (1) Transmitter
  • (2) Receiver
  • (y) Parallel movement in mm
  • (x) Distance in m

Alle erweitern

Verwandte Produkte & Zubehör

XUZA50

Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUM, metal

XUZAM01

Bottom mounting bracket, Photoelectric sensors XU, accessory for sensor, XUM, base fixing metal
