XUSLDSY5A0520

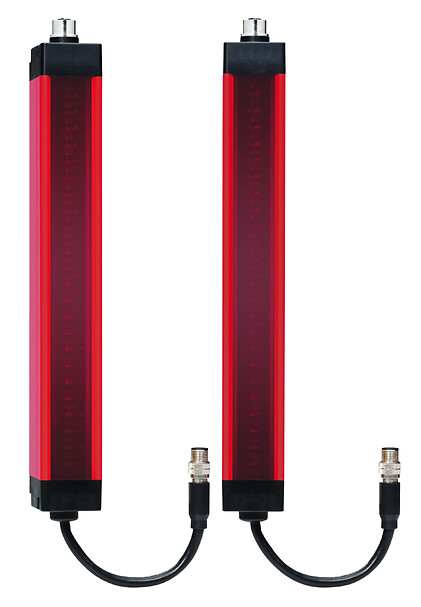

Safety light curtain segments type 4 - XUSLDS - for hand protection - 520 mm
End of commercialisation Datum der Produktabkündigung : Datum des Service-Endes :
XUSLDSY5A0520 is replaced by the following product:
XUSL4E30H061NS1
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave1, For hand protection, Hp = 610 mm, R=30 mm
Menge 1
Alle erweitern
Datenblatt
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Safety light curtain segments type 4
Series name
Advanced
Device short name
XUSLDS
Product compatibility
XUSLDM
Product specific application
For hand protection
Detection system
Transmitter-receiver system
Response time
23 ms four segments, 23 ms three segments, 23 ms two segments
Kit composition
1 receiver(s), 1 transmitter(s), 2 sets of 2 brackets with fixings
Electrical connection
Flying lead with 1 female connector M12 4 pins receiver, flying lead with 1 female connector M12 4 pins transmitter
Unit type of package 1
PCE
Number of units in package 1
1
