ZCP29M12

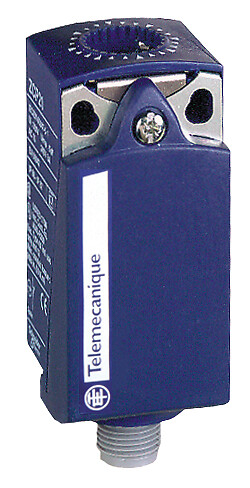

Limit switch body, Limit switches XC Standard, ZCP, compact, 2NC, snap action, M12 4P
COMMERCIALISED
Expand all
Datasheet
Range of product
TE LIMIT SWTES XC STNDRD
Series name
UNIVERSAL
Product or component type
LIMIT SWITCH BODY
Device short name
ZCP
Design
COMPACT
Body type
FIXED
Body material
PLASTIC
Contacts type and composition
2 NC
Contact operation
SNAP ACTION
Electrical connection
Male connector M12, 4 pins
Contacts insulation form
ZB
Contacts material
SILVER PLATED CONTACTS
Positive opening
WITH
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Product compatibility
XCKD
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.3000 CENTIMETER
Package 1 width
3.9000 CENTIMETER
Package 1 length
10.0000 CENTIMETER
Package 1 weight
70.0000 GRAM
Unit type of package 2
S02
Number of units in package 2
77
Package 2 height
15.0000 CENTIMETER
Package 2 width
30.0000 CENTIMETER
Package 2 length
40.0000 CENTIMETER
Package 2 weight
5.8460 KILOGRAM
