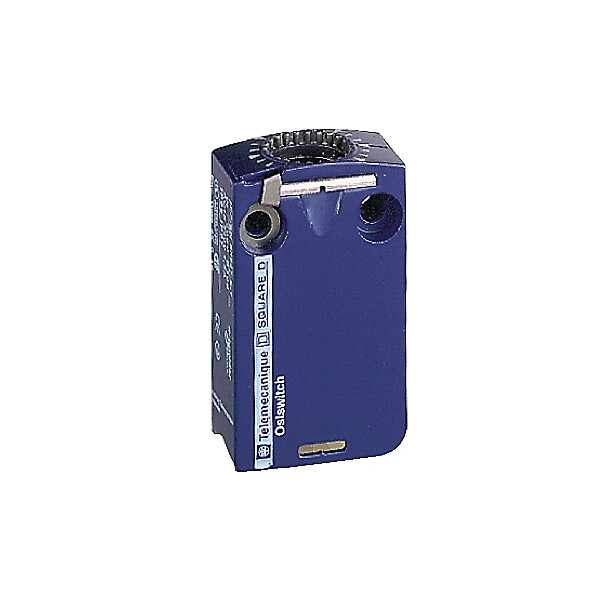

ZCMD25
Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, slow break
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body
Device short name
ZCMD
Design
Miniature
Body type
Plug-in body
Body material
Zamak
Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break, break before make
Product compatibility
XCMD
Electrical connection
Plug-in without pre-cabled connection
Contacts insulation form
Zb
Contacts material
Silver plated contacts
Positive opening
With
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6 CENTIMETER
Package 1 width
5.3 CENTIMETER
Package 1 length
3 CENTIMETER
Package 1 weight
0.056 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.599 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
40
Package 3 height
15 CENTIMETER
Package 3 width
15 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
2.585 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
